| 介質： | 最大壓力 | 溫度 | 轉速 |
| 水 | 2.5MPa | +100℃ | 300RPM |
| 空氣 | 1.0MPa | -30~+90℃ | 100RPM |
| 水 | 1.8MPa | -30~+100℃ | 3500RPM |
| 液壓油 | 30MPa | +75℃ | 10RPM |

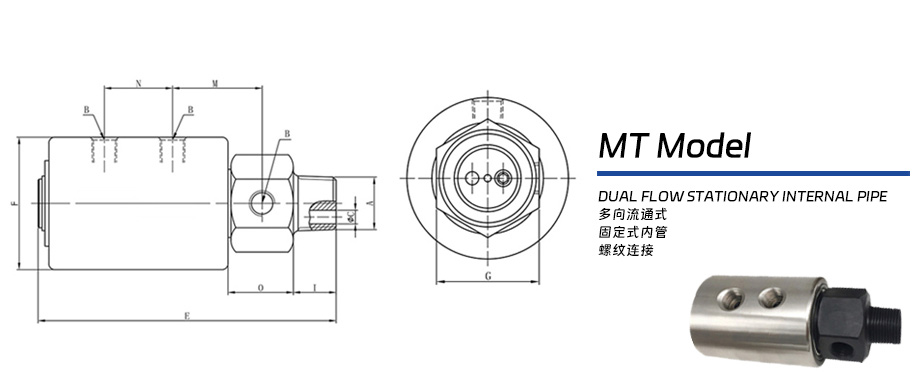

| MT型多通路液壓旋轉接頭規格尺寸 | ||||||||||
| Order-No. | A | B | C | E | F | G | I | O | N | M |
| MT0220-10R | R3/4” | Rc3/8” | Φ7 | 148 | Φ68 | 46 | 22 | 30 | 34 | 45 |
| MT0225-10R | R1” | Rc3/8” | Φ9 | 148 | Φ68 | 46 | 22 | 30 | 34 | 45 |
| MT0232-15R | R1-1/4” | Rc1/2” | Φ12 | 182 | Φ78 | 54 | 25 | 40 | 42 | 57 |
| MT0240-15R | R1-1/2” | Rc1/2” | Φ15 | 193 | Φ98 | 65 | 28 | 40 | 44 | 57 |
| 本公司對旋轉接頭產品規格、設計特性均不斷改進，上述規格尺寸等參數如有變更，恕不另行通知！ | ||||||||||
